Recent Restorations at Snoqualmie

Here are some pictures of the trucks under the WRL #001 caboose frame. Though not original to the caboose, they are identical to the type used under WRL #002, older sibling of #001.

The trucks under the WRL #001 caboose frame.

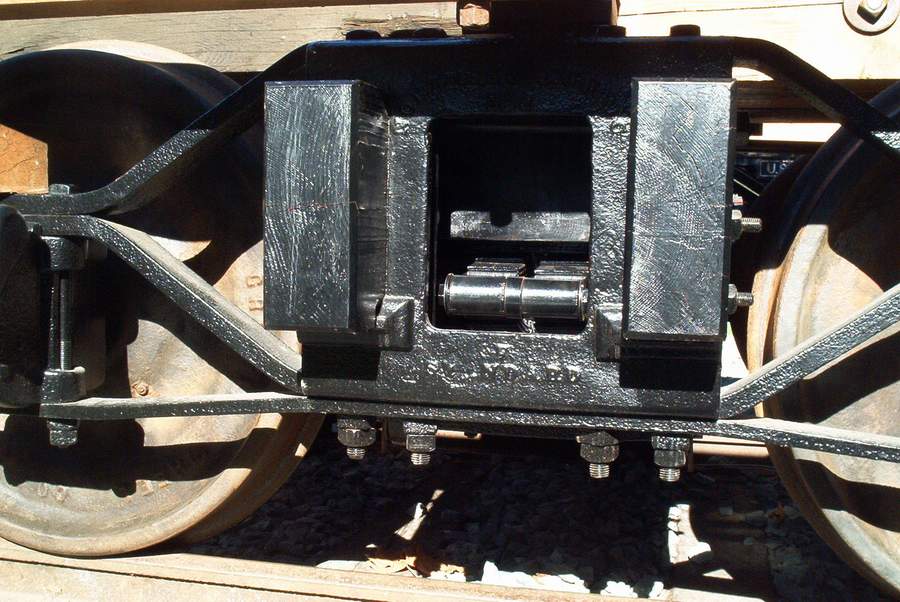

Another view of a truck under the frame. The bolster and spring can be seen through the truck.

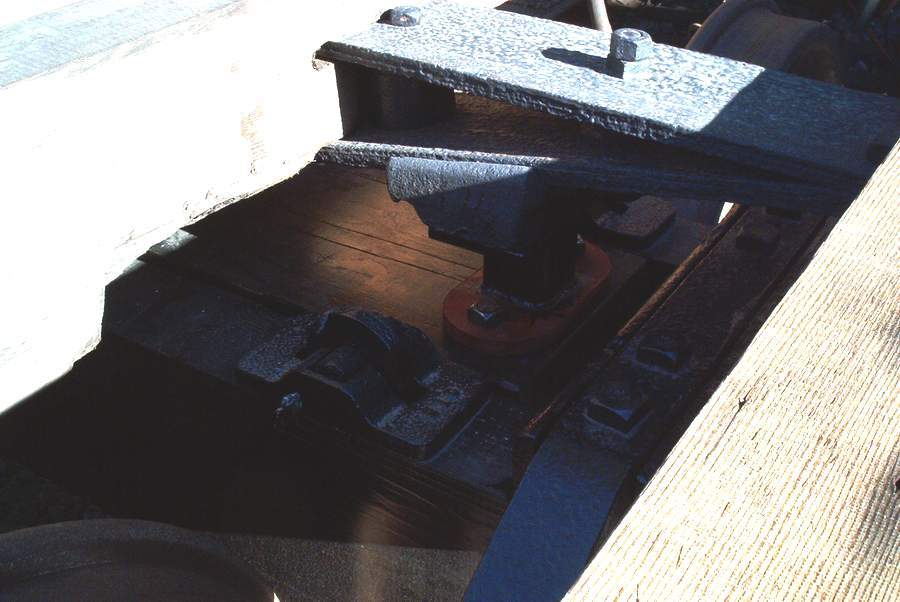

Looking down through the frame, the body bearing and bearing block can be seen.

Here are a couple of pictures from the first attempt to put the bolsters in the trucks.

The bolster sitting on the original springs. You can see how far the bolster sits above the truck.

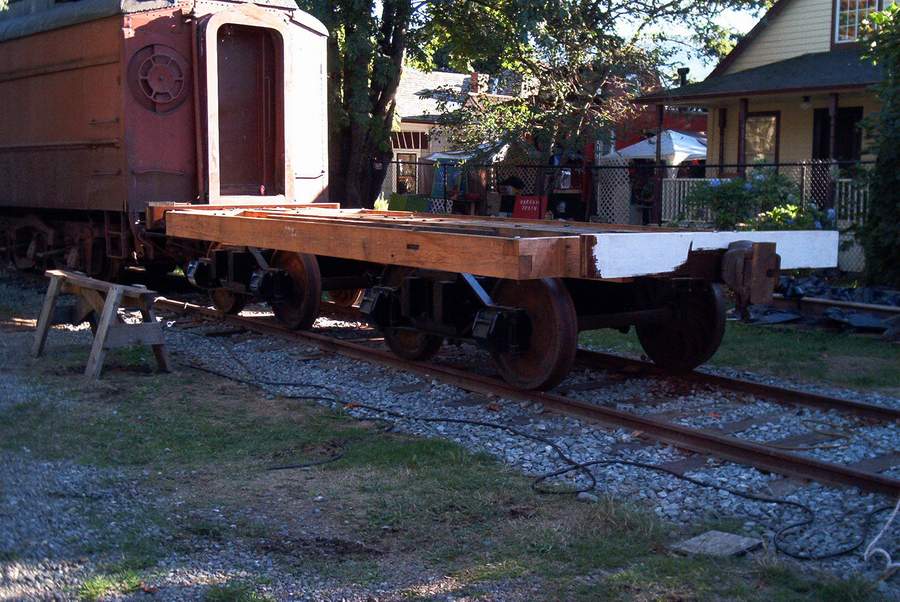

The frame is on the trucks but is almost three inches too high.
